WH/25283/A/NF 116 AMV AIR/STEAM WHISTLE, 1-1/2'' BELL DIAMETER, 3/8''N.P.T.

$420.80
Item
17078
WH/25283/A/NF 116 AMV AIR/STEAM WHISTLE, 1-1/2'' BELL DIAMETER, 3/8''N.P.T.

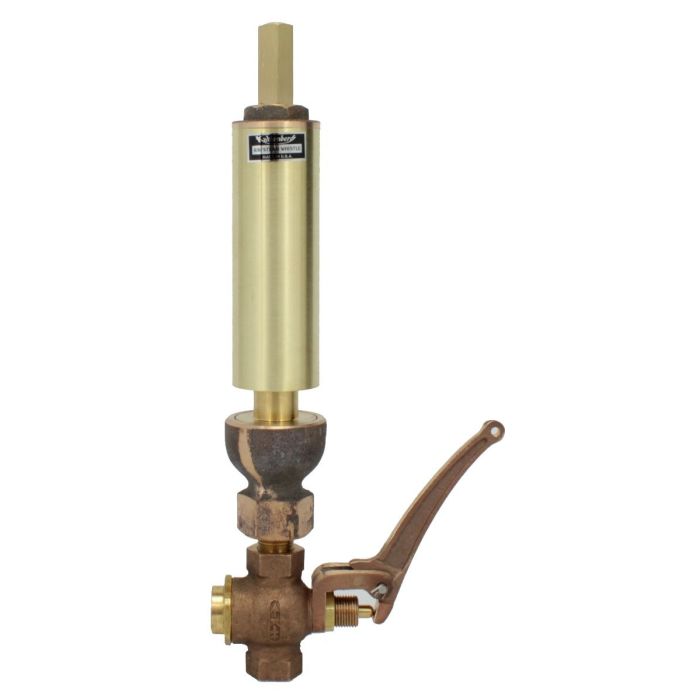

Air/Steam Whistle Model 116 with Valve

Product Tabs

Kahlenberg Air and Steam Whistles are distinctive, powerful signals backed by decades of successful performance in marine and industrial applications throughout the world. Designed to operate on 50 to 200 p.s.i. of air or steam pressure, these whistles produce an omni-directional warning which stands out from background noise. All Kahlenberg Whistles are made of cast bronze, with a one piece brass bell. Operates with electric solenoid or other actuating valves of 1/4" pipe size or greater.
  • Highly reliable, no maintenance
  • All Bronze and Brass Construction for corrosion resistance
  • Omni-Directional, designed to penetrate high levels of background noise
  • Manual "Quick Opening" operating valve included
Coverage Area:
1 km/.5 Mile
Additional Specifications:
SPL (loudness) on Total
124± 1 dBA @ 1 meter
Air Inlet
3/8 NPT
Operating medium
Air, nitrogen, CO2
Air consumption
39 L/Sec [82.2 SCFM] on 7 bar [100 PSIG]
Control
Manual, Solenoid or Combination valve
Fundamental Frequency
631 Hz ± 20 Hz
Operating Pressure
3 14 bars [50 -200 PSIG]
Operating Temperature
-4ºC to +85ºC [25ºF to +185ºF]
Finish
None
Degree of Protection
IP 54
Basic Dimension
38mm x 178mm x 305mm [1.5x 7x 12"]
Net Weight
1.8kg [4 lbs]
