MicroMate Vibration Monitoring System

From $4,745.00

To $27,895.33

Item
721AKIT
Add to Wish List Add to Compare

BUILD YOUR OWN MICROMATE KIT

  1. Select "Customize" Above
  2. Choose your base unit
  3. Choose your power adaptor style
  4. Add any optional upgrades and accessories
  5. Add it to your cart!
Customize MicroMate Vibration Monitoring System

* Required Fields

Your Customization
MicroMate Vibration Monitoring System
MicroMate Vibration Monitoring System

In stock

$4,745.00

Summary

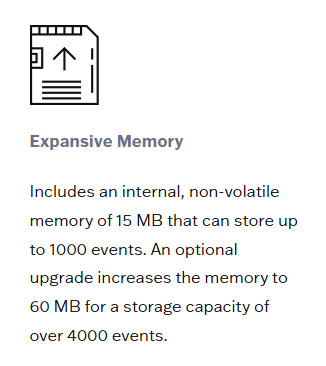

    Seamlessly record vibration, sound/noise, or air overpressure with just one monitoring unit. The Micromate monitoring unit was custom engineered with a rugged and reliable design to withstand harsh conditions, including water-resistance. Experience zero dead-time that includes 10 to 15 days of uninterrupted monitoring with the provided internal battery. The 15 MB of memory can store up to 1,000 events, upgradeable to 4,000 events with the extended 60 MB memory option.

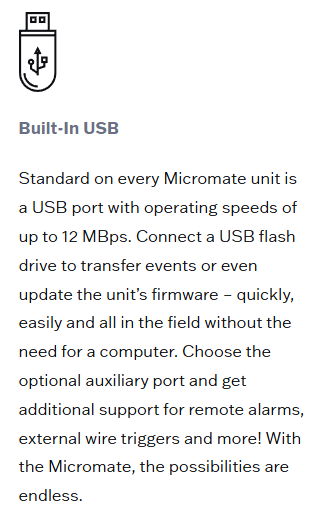

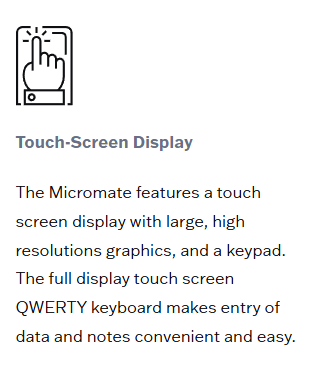

    The Micromate monitoring unit is light and portable. It is small enough to fit in the palm of your hand and features a highresolution color touch-screen display with a QWERTY key pad. It features a built-in USB port so you can easily connect a USB flash drive to transfer events or even update the unit’s firmware – quickly, easily and all in the field without the need of a computer.

    The Micromate monitoring unit comes with three channels for a triaxial geophone and one channel for an air overpressure or sound level microphone.

    SPECS:

     Dimensions

     101.6 x 135.1 x 44.5 mm (4.15 x 5.32 x 1.75 in)

     Unit Weight

     0.5 kg (1.1 lbs)

     Battery

     10-day rechargeable lithium-ion (optional 15-day battery upgrade available)

     User Interface

     10 domed tactile with separate keys for common functions

     Display

     QVGA, 320 x 240 color touchscreen

     PC Interface

     USB

     Environmental

     LCD Operating Temperature: -10 to 55 °C (14 to 131 °F)

     Electronics Operating Temperature: -40 to 45 °C (-40 to 113 °F)

     Operating Temperature: -40 to 55 °C (-40 to 131 °F)

     Wireless

     Supported modems: Sierra Wireless™ Airlink® RV-50, GX-400, LS-300.

     Electrical Standards

     CE Class B - The Micromate has been tested and passed IEC 61010-1:2010

     Record Modes

     Waveform, Waveform Manual, Histogram, and Histogram-Combo™
    Micromate Feature Diagram
    Micromate with sound level microphone attached

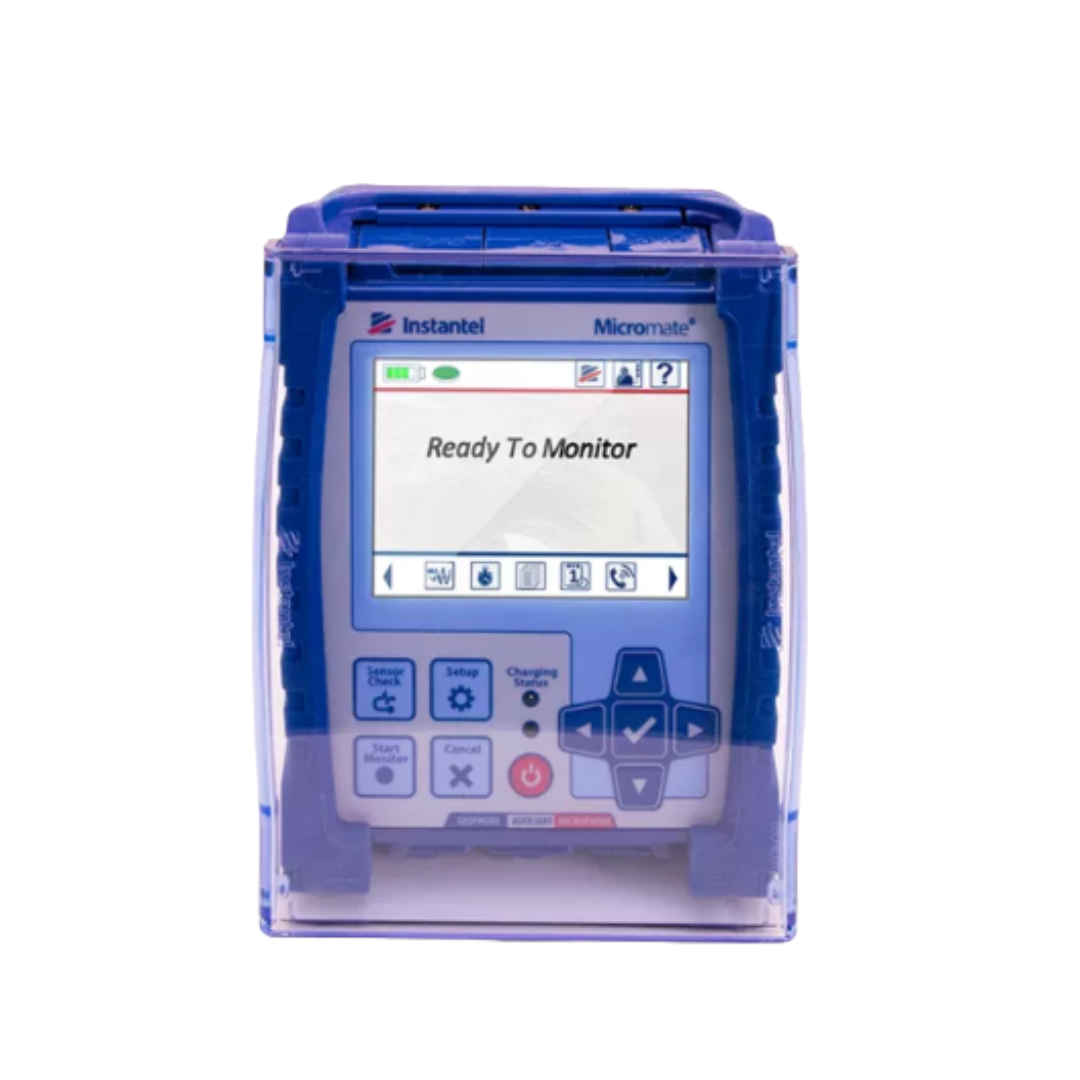

    Micromate Inside Protective Boot
    Ends of Micromate unit inside protective boot

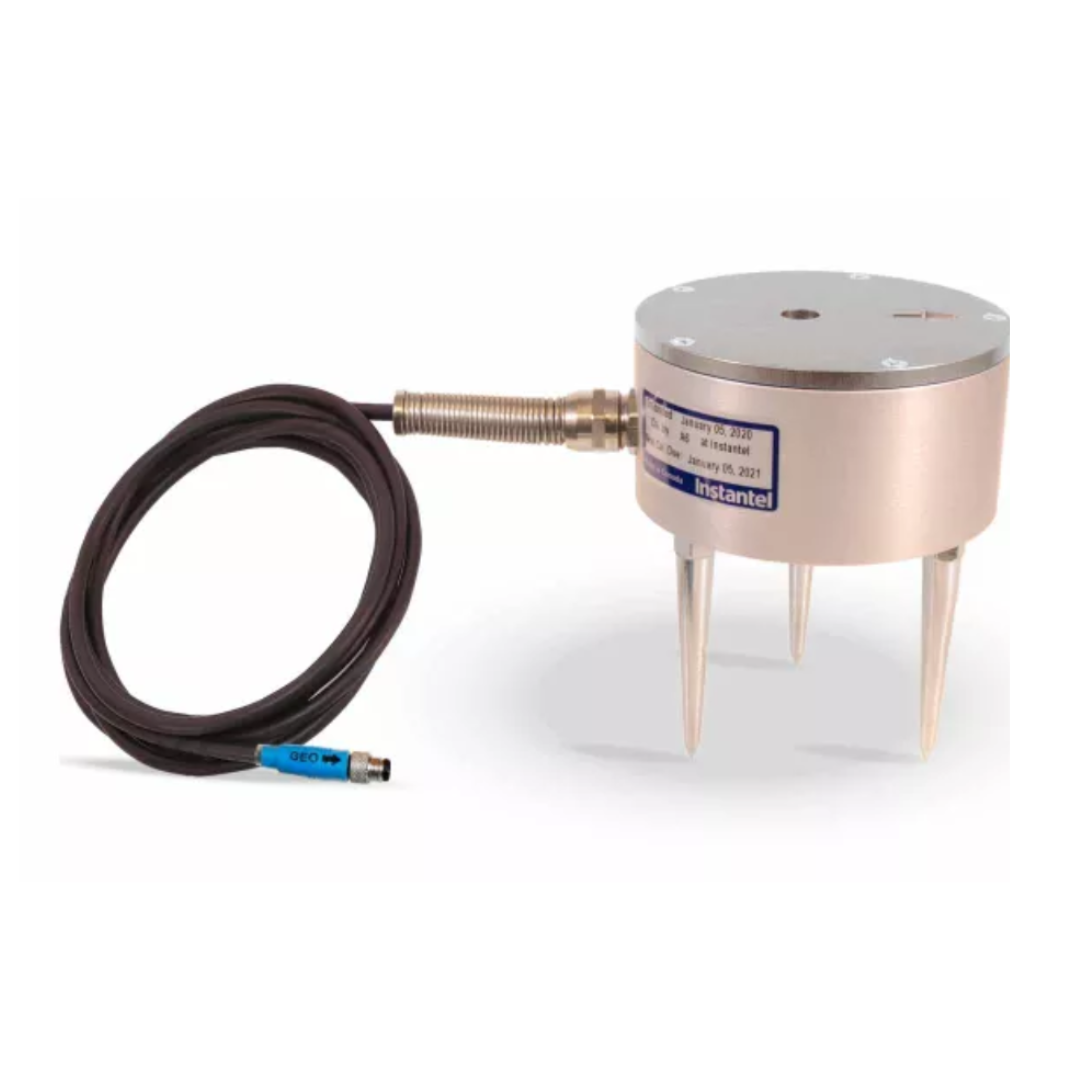

    ISEE Geophone
    Micromate installed on wall in the field

    MUST HAVE AUXILIARY PORT

    MUST HAVE AUXILIARY PORT

    Related Products
    Check items to add to the cart or
    1. Micromate Boot: Protective rubber boot and plastic cover for the Micromate.
      Micromate Boot: Protective rubber boot and plastic cover for the Micromate.
      $199.00
      Add to Wish List Add to Compare
    2. Micromate Universal Charger: Power adaptor for use with Micromate monitoring units internationally. Input 110-240V AC. Output 5V DC, 1A.
      Micromate Universal Charger: Power adaptor for use with Micromate monitoring units internationally. Input 110-240V AC. Output 5V DC, 1A.
      $49.00
      Add to Wish List Add to Compare
    3. Micromate Portable Printer: Battery operated printer that includes a USB cable. Lightweight and easily transported for printing event reports in the field.
      Micromate Portable Printer: Battery operated printer that includes a USB cable. Lightweight and easily transported for printing event reports in the field.
      $2,024.95
      Add to Wish List Add to Compare
    4. Micromate Remote Alarm Controller: Self-contained controller complete with 2 m (6.6 ft) cable and high power auxiliary drive capability for external sirens and other alarms. Note: Requires the auxiliary port option (p/n 721A0101).
      Micromate Remote Alarm Controller: Self-contained controller complete with 2 m (6.6 ft) cable and high power auxiliary drive capability for external sirens and other alarms. Note: Requires the auxiliary port option (p/n 721A0101).
      $574.99
      Add to Wish List Add to Compare
    5. Micromate External Trigger Cable: 2 m (6.6 ft) cable used to remotely trigger a Micromate monitoring unit. Note: Requires the auxiliary port option (p/n 721A0101).
      Micromate External Trigger Cable: 2 m (6.6 ft) cable used to remotely trigger a Micromate monitoring unit. Note: Requires the auxiliary port option (p/n 721A0101).
      $238.99
      Add to Wish List Add to Compare
    6. Micromate Extension Cable
      Micromate Extension Cable
      As low as $309.99
      Add to Wish List Add to Compare
    7. Micromate ISEE Triaxial Geophone
      Micromate ISEE Triaxial Geophone
      As low as $1,519.96
      Add to Wish List Add to Compare
    8. Micromate DIN Triaxial Geophone
      Micromate DIN Triaxial Geophone
      As low as $1,519.96
      Add to Wish List Add to Compare
    9. Micromate Triaxial Borehole Geophone
      Micromate Triaxial Borehole Geophone
      As low as $3,294.92
      Add to Wish List Add to Compare
    10. Triaxial Geophone Leveling Plate: Package includes leveling plate, feet and integrated spirit level. For use with Micromate, Minimate Pro, Minimate Plus and Minimate Blaster external geophones.
      Triaxial Geophone Leveling Plate: Package includes leveling plate, feet and integrated spirit level. For use with Micromate, Minimate Pro, Minimate Plus and Minimate Blaster external geophones.
      $409.99
      Add to Wish List Add to Compare
    11. Triaxial Geophone Wall Mount Kit: Used to mount an Instantel Triaxial Geophone to a wall or other vertical surface. Package includes aluminum mounting block, bolts and mounting instructions. For use with Micromate, Minimate Pro, Minimate Plus and Minima
      Triaxial Geophone Wall Mount Kit: Used to mount an Instantel Triaxial Geophone to a wall or other vertical surface. Package includes aluminum mounting block, bolts and mounting instructions. For use with Micromate, Minimate Pro, Minimate Plus and Minima
      $614.98
      Add to Wish List Add to Compare
    12. Micromate Sound Level Microphone: Class 1 noise microphone. Includes a 2 m (6.6 ft) cable and microphone stand (p/n 720A6001). Note: Base Unit serial number above UM8000 required for compatibility, otherwise 721UPGRADE1 needed.
      Micromate Sound Level Microphone: Class 1 noise microphone. Includes a 2 m (6.6 ft) cable and microphone stand (p/n 720A6001). Note: Base Unit serial number above UM8000 required for compatibility, otherwise 721UPGRADE1 needed.
      $2,694.93
      Add to Wish List Add to Compare
    13. Micromate Linear Microphone: Measures air overpressure in a linear scale. Includes a 2 m (6.6 ft) cable and microphone stand (p/n 720A6001).
      Micromate Linear Microphone: Measures air overpressure in a linear scale. Includes a 2 m (6.6 ft) cable and microphone stand (p/n 720A6001).
      $1,194.97
      Add to Wish List Add to Compare
