BTS-10 Blasting Machine
$298.00
Item
38155

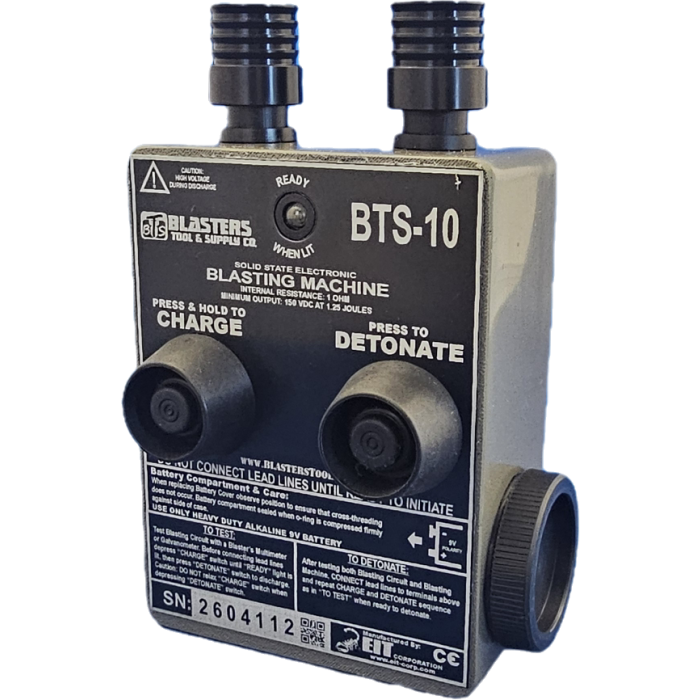

BTS-10 Blasting Machine
BTS‐10
Solid‐State Electronic Blasting Machine
| ELECTRIC INITIATION | ||
|---|---|---|
| FIRING ENERGY: | 150VDC @1.25Joules | |
| FIRING CAPABILITY: | Electric Blasting Caps | |
| FIRING CAPACITY: | 50Ohms circuits requiring minimum 1.5A @ 20mJ/Ohm of resistance |
|
| FIRE CIRCUIT: | Locked out unless full charge is available | |
| ARMED INDICATOR: | High visibility green LED | |
| CHARGING TIME: | 1Second | |
| SAFETY | ||
| OUTPUT: | Binding Posts shunted internally | |
| ABORT: | When ‘Charge ‘switch is released before ‘Detonate ‘ unit is returned to stand-by condition |
|
| FIRING: | Requires sequenced 2switch operation | |
| MECHANICAL | ||
| DIMENSION: | 3″wide x 1.5″thick x 4″high (7.6cmx 3.8cmx 10.1cm) | |
| WEIGHT: | 15oz w /battery (425g) | |
| CASE MATERIAL: | HD Urethane | |
| HARDWARE: | Brass ,Nylon ,Rubber | |
| INGRESS: | IP68 (3m) | |
| OPERATING TEMP: | Tested -20°F -140°F (-29°C -60°C ) | |
| STORAGE TEMP: | Tested -45°F -180°F (-42°C -82°C ) | |
| COLORS: | Grey | |
| POWER SOURCE | ||
| BATTERY: | Replaceable 9V(HD alkaline recommended ) | |
| LIFE: | -350+Charge /Fire Cycles typical | |
| FEATURES | ||
| CONNECTION: | EIT’s quick -connect HD Output Binding Posts | |
| SWITCHES: | Switchguard protected ,rugged waterproof boots | |
| BATTERY: | Battery loads smoothly through side of unit and is secured in place by easy-on/off battery cap | |
| WARRANTY: | Lifetime warranty against manufacturing defects | |
