C3 BULLSEYE CIRCUIT TESTER
$126.15
Item
73723
C3 BULLSEYE CIRCUIT TESTER
C3 Bullseye
Circuit Continuity Indicator
| Electrical | |
|---|---|
| RANGE: | 0 – 1,999 Ohms |
| MEASUREMENT: | 0-150 Ohms, 151-250 Ohms, 250+ Ohms |
| TEST CURRENT: | 2.3mA (0.0023A) |
| INDICATION: | Haptic |
| ELECTRONICS: | Internally Fused, Current Limited, Blasting Safe |
| ON STATE: | Immediate when circuit present on contacts |
| Mechanical | |
| DIMENSION: | 1.375” Dia x 0.96” thick (3.5cm x 2.4cm) |
| WEIGHT: | 2 oz (0.05g) |
| CASE MATERIAL: | Nylon Plastic |
| HARDWARE: | Aluminum |
| INGRESS: | IP67 (1m) |
| OPERATING TEMP: | Tested to -20°F – 140°F (-29°C – 60°C)s |
| COLORS: | Black |
| Power Source | |
| BATTERY: | 1 Internally Sealed, Non-Replaceable 3V |
| LIFE: | Approximately 10 years with moderate weekly use results may vary |
| Features | |
| CONTACTS: | Broad and handily accessed, allow for quick connection and release of lead lines |
| CARABINER: | Easily clipped to Molle Gear, Belt, or Work Bag |

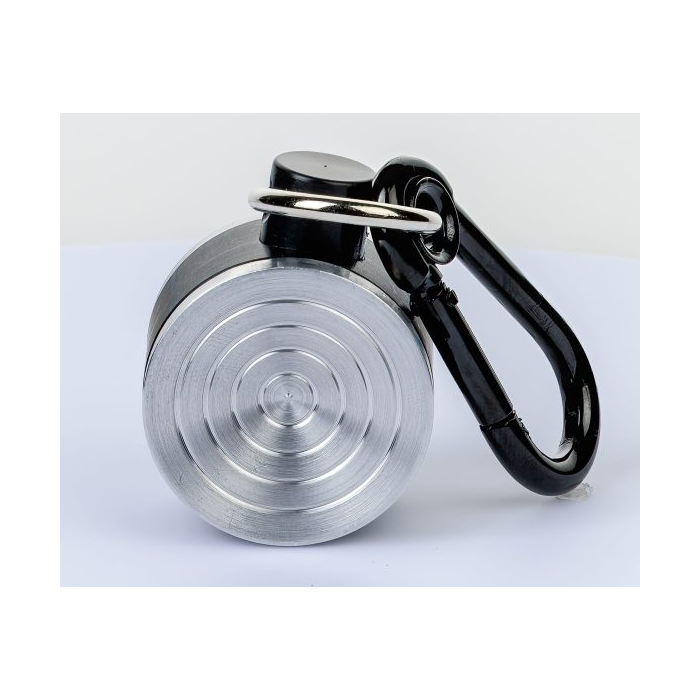

The Scorpion C-3 Bullseye is a mini Blaster’s Ohmmeter that indicates a complete circuit and its detected level of resistance to the user by varied haptic responses.
When lead lines are pressed to the large aluminum contacts, the unit measures resistance with a secure blasting-safe signal and indicates by vibration resistance levels of:
- 0-150 Ohms: Constant Vibration
- 151-250 Ohms: Dot/Dash Vibrations
- 250+ Ohms: Dot/Dot Vibrations
The C-3 Bullseye incorporates an encapsulated power source that provides years of service in the field. A D-Ring is affixed to the top of the device for a factory supplied carabiner clip.
