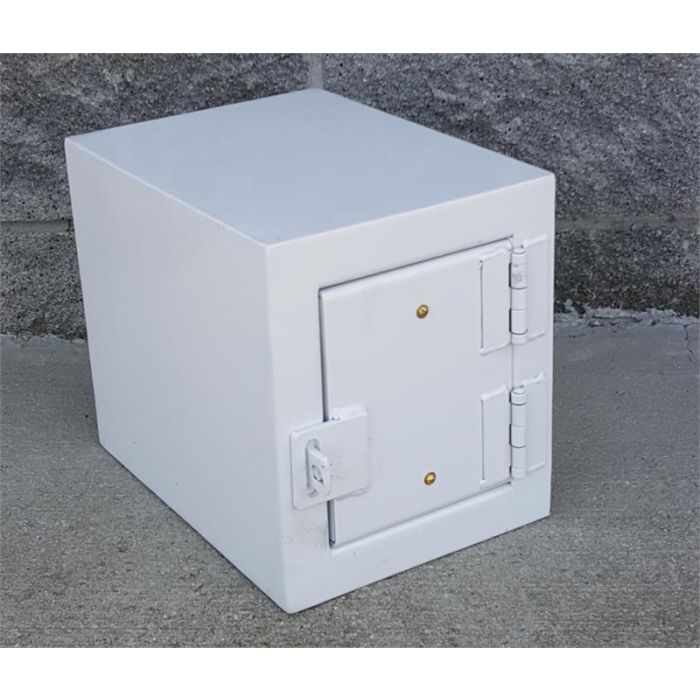

IME 22 BOX: 10" X 14" X 12"

Outside dimensions: 10”L x 14”W x 12”H

Inside demensions: 7.5”L x 11.5” x 9.5”H

Exterior Material: 11 gauge steel

Interior Lining: 1/2” sheetrock layer, 1/2” A/C grade plywood layer





Meets IME 22 recommended specifications shown below

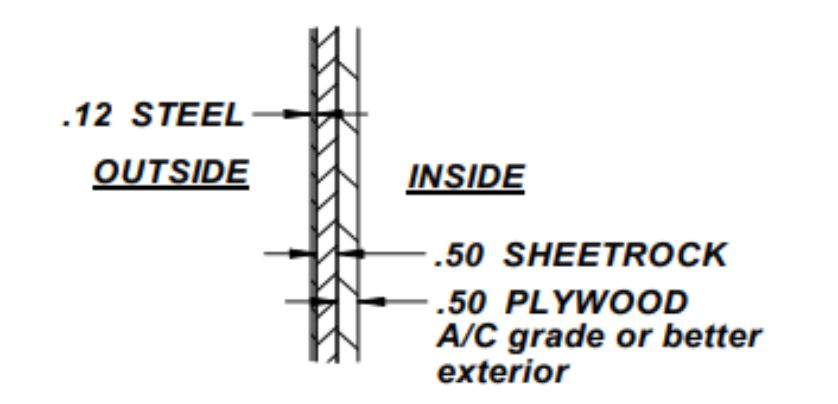

-Exterior walls and lid or door of each SLP-22 container or compartment shall consist of a

laminate constructed of not less than 11 gauge steel, continuously welded at all joints, and

lined with 1/2 inch sheetrock and 1/2 inch A/C grade or better exterior plywood.

-The laminated materials are securely bound together by water-proof adhesive or other

equally effective means.

-The steel at the joints of lamination are secured by continuous fillet welds.

-Latches, hinges, and other structural components are made of steel.

-Latches, hinges, and other structural components are attached to the steel in the wall

laminate.
