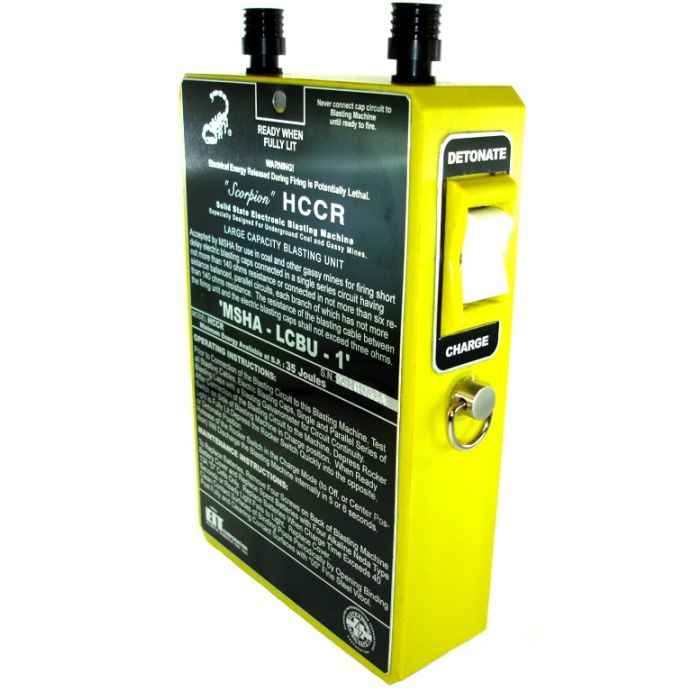

HCCR SINGLE CIRCUIT MACHINE

$1,126.65
Item
15091
HCCR SINGLE CIRCUIT MACHINE


MSHA ACCEPTED LARGE CAPACITY BLASTING UNIT
ACCEPTANCE No.: MASHA-LCBU-1

The Scorpion HCCR is a specially designed large-capacity solid-state electronic blasting machine for use in blasts which exceed the capacity of regular permissible blasting units. The HCCR is built with the same type of shunting circuitry found in the HB-20P and HB-20AP so that it can be used in coal and gaseous mines, and this unit is MSHA Accepted (Acceptance #MSHA-LCBU-1). Use of this product does require a variance from mine inspectors. The HCCR is designed to detonate up to 150 short-delay iron leg wire electric detonators in a circuit of 6 series of 25 in parallel.

Mechanical:
Case Material: H.D. Urethane
Case Size: 3"W x 2"D x 9"H
7.6cm W x 5.8cm D x 22.8cm H
Weight: 2 lbs. 4 oz. (1.022 kg)
Shipping Weight: 3 lbs. (1.5 kg)

Electrical:
Type of Circuitry: Solid State Electronic
Firing Control Circuit: SCR (silicon controlled rectifier)
Firing Voltage: 445 VDC Minimum (Nominal)
Firing Energy: 35 Joules (w/s)
Shunt Circuit: SCR (silicon controlled rectifier)
Shunt Timing: 4.5 to 8 m/sec (Avg 6 m/sec)
Power Source: 4 Ea. 1.5V Alkaline Dry Cells ('D' Cells, NEDA 13A)
Battery Voltage: 4 x 1.5V (6V Total)
H.V. Source: Inverter, Solid State Electronic
Energy Storage: Capacitor, Special Electrolytic, H.D.

Capacity:
Up to 150 short-delay iron leg wire electric detonators in a circuit of 6 series of 25 in parallel.

Output:
OSCILLOGRAM TRACE

Typical Discharge
1) thru open circuit
2) thru 350 Ohms
3) thru 250 Ohms
4) thru 150 Ohms
5) thru 50 Ohms
V-100V/Div H-1ms/Div



Operating Manual:
SCORPION HCCR
SOLID STATE ELECTRONIC BLASTING UNIT
MSHA ACCEPTANCE# MSHA-LCBU-1
Section I - Mechanical

Case Material: Heavy Duty Urethane
Case Size: 6"W x 2"D x 9"H (15.24cm W x 5.8cm D x 22.86cm H)
Weight: 4 lbs. (1.82 kg)
Type Circuitry: Solid State Electronic
Firing Voltage: 445 VDC Minimum (Nominal)
Firing Energy: 35 Joules (w/s)
Shunt Timing: 4.5 to 8 m/sec (Avg 6 m/sec)
Power Source: 4 Ea. 1.5V Alkaline Dry Cells ('D' Cells, NEDA 13A)

Section II - Operating Procedures

TO TEST: Before connecting to blasting circuit; charge by pressing switch
to "CHARGE" position. When "READY" light illuminates press switch to
"DETONATE" position. "READY" light should go off immediately.

For the practical purposes of these instructions "READY WHEN FULLY LIT"
is to indicate that the ready light be of singular and even luminesce
quality before pressing "DETONATE."

When "READY" light fails to illuminate replace the four (4) Alkaline 'D'
Cells under battery cover on back of machine. Observe polarity when
replacing cells and replace cover.

TO OPERATE: Connect machine to the blasting circuit and repeat "CHARGE"
and "DETONATE" sequence as in "TO TEST."

Section III - Handling & Care

To maintain the proper functionality of your Scorpion HCCR Blasting unit
please observe the following:

a. Avoid severe impact. The HCCR is impact resistant however
severe localized or blunt impact could crack and/or breach
the HCCR's casing. NEVER USE THIS UNIT IF ITS CASE IS
CRACKED OR BREACHED. In this instance please see
Section V - Servicing.
b. Avoid leaving the HCCR partially or fully submerged in water.
should your HCCR become partially or fully submerged in
water towel dry the machine including switch and binding
posts. Remove rear battery compartment cover and replace
the four (4) Alkaline 'D' cells to prevent possible battery
corrosion. Dry off inside battery compartment with a towel and
leave the machine in open air to dry. Should battery
corrosion occur refer to Section V - Servicing.
c. Avoid wrenching, impacting, or over-tightening binding posts.
Should this happen to the binding posts the protective
plastic shielding may become damaged or removed. SHOCK
HAZARD: If the protective plastic shielding is removed from
one or both of the binding posts potentially lethal voltage
exists to a grounded blaster should contact be made with the
exposed binding post at discharge. See Section V
- Servicing for maintenance and repair information.
d. After daily use clear debris and/or dust from in and around
switch bezel and store it in a safe and dry environment.
e. NEVER use your HCCR as a lever or impact device.
f. NEVER use your HCCR as an alternate energy source on equipment
for which it was not designed.
g. Output oscillograms are recorded on every machine by the
manufacturer. If you need a copy of these test traces
contact E.I.T. Corporation at (570) 286-7744. For annual
or biannual maintenance programs: Testing and output traces
are available by the manufacturer. See Section V - Servicing
for return information.
h. NEVER USE A DAMAGED OR QUESTIONABLE MACHINE. For repair and
servicing see Section V - Servicing.

Section IV - Labeling

In accordance with MSHA regulations your HCCR must have a label which
clearly designates it as an MSHA approved Permissible Blasting Unit when
used in that capacity. Should this label become unlegible or is removed
see Section V - Servicing for replacement.
