IME 22 BOX: 17" X 24" x 18"



Outside dimensions: 17”L x 24”W x 18”H

Inside demensions: 14.5”L x 21.5” x 15.5”H

Exterior Material: 11 gauge steel

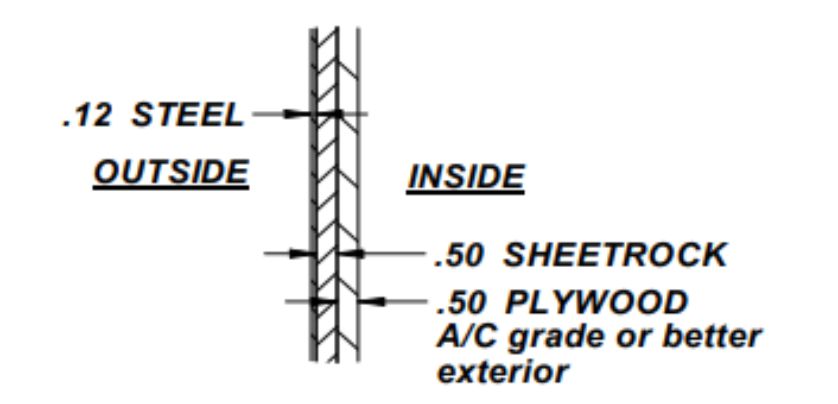

Interior Lining: 1/2” sheetrock layer, 1/2” A/C grade plywood layer





Meets IME 22 recommended specifications shown below

-Exterior walls and lid or door of each SLP-22 container or compartment shall consist of a

laminate constructed of not less than 11 gauge steel, continuously welded at all joints, and

lined with 1/2 inch sheetrock and 1/2 inch A/C grade or better exterior plywood.

-The laminated materials are securely bound together by water-proof adhesive or other

equally effective means.

-The steel at the joints of lamination are secured by continuous fillet welds.

-Latches, hinges, and other structural components are made of steel.

-Latches, hinges, and other structural components are attached to the steel in the wall

laminate.
