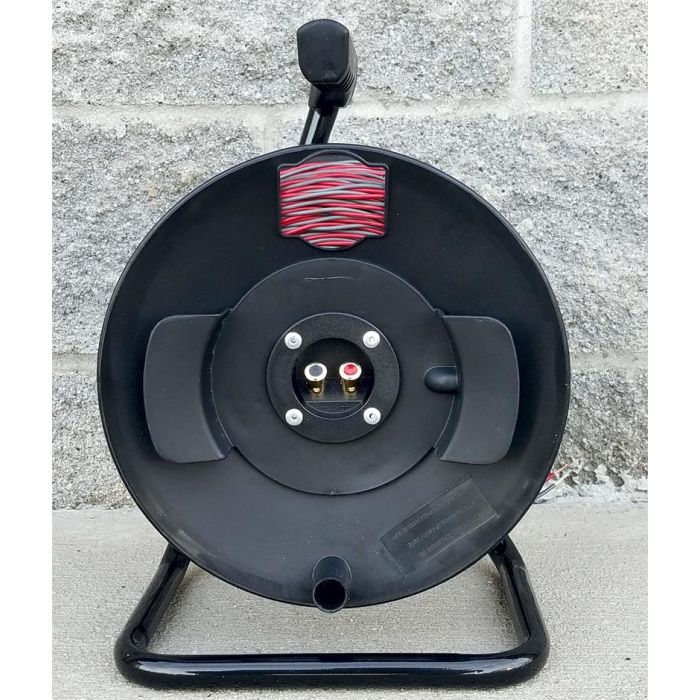

Metal Frame Reel W/ Terminals & 18/2 Duplex - 500'/150m (Red & Grey)

$130.85
Item
15065-18TW
Add to Wish List Add to Compare
Metal Frame Reel W/ Terminals & 18/2 Duplex - 500'/150m (Red & Grey)

Reel Specifications:

  • Color: Black
  • Product Packaging: Sleeve & Adhesive Label
  • Unit Measurement (DxWxH): 7.25 x 10.00 x 13.50
  • Two Terminal outlet in center hub
  • Wire Length: 500'

Wire Specifications:

18 Gauge, Duplex Connecting Wire, Stranded (Multi Strand), Length 500'

Red/Gray PVC coating.


AWG Wire Table, AWG Copper Wire Gauge Chart
AWG Diam. (mils) Circular mils Ohms/1000ft Current Carrying Fusing Current Feet per Pound
0000 460 212000 0.050 - - 1.56
000 410 168000 0.063 - - 1.96
00 365 133000 0.077 - - 2.4826
0 324.85 105531 0.096 - - 3.1305
1 289.3 83694 0.1264 119.6 - 3.947
2 257.6 66358 0.1593 94.8 - 4.977
3 229.4 52624 0.2009 75.2 - 6.276
4 204.3 41738 0.2533 59.6 - 7.914
5 181.9 33088                        0.3915 47.3 - 9.980
6 162 26244 0.4028 37.5 668 12.58
7 144.3 20822 0.5080 29.7 561 15.87
8 128.5 16512 0.6405 23.6 472 20.01
9 114.4 13087 0.8077 18.7 396 25.23
10 101.9 10384 1.018 14.8 333 31.82
11 90.7 8226 1.284 11.8 280 40.12
12 80.8 6529 1.619 9.33 235 50.59
13 72.0 5184 2.042 7.40 197 63.80
14 64.1 4109 2.575 5.87 166 80.44
15 57.1 3260 3.247 4.65 140 101.4
16 50.8 2581 4.094 3.69 117 127.9
17 45.3 2052 5.163 2.93 98.4 161.3
18 40.3 1624 6.510 2.32 82.9 203.4
19 35.9 1289 8.210 1.84 69.7 256.5
20 32.0 1024 10.35 1.46 58.4 323.4
21 28.5 812 13.05 1.16 - 407.8
22 25.3 640 16.46 .918 41.2 514.12
