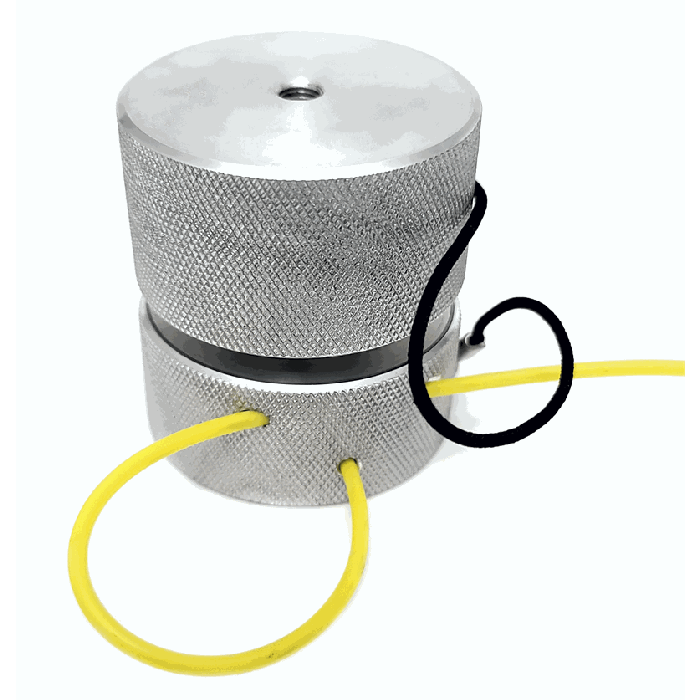

MUSHROOM STARTER

The mushroom starter provides an economical way to initiate shock tube. This unit utilizes a #209 primer for initiation.  For best results, insert the #209 primer in the base, load the shock tube, place on the ground and then stomp to initiate.

Specifications:
Material: Aluminum
Total Height: 2.75"
Diameter: 2.5"

Operation Instructions:

1, Insert shock tupe through horizontal side holes of the bottom portion of the mushroom.  The tube should pass through and exit out the opposite side.

2. Insert the end of the shock tube until it stops into the most bottm hole in the center of the pass through holes above.

3. Remove the top and place a #209 primer into the botton portion of the mushroom starter.

4. Place the top portion on bottom portion and lay the unit the unit on the ground with top portion facing up.

5.  Once all clear is confirmed, stomp the top of the mushroom starter.
