S1 Combination Initiator

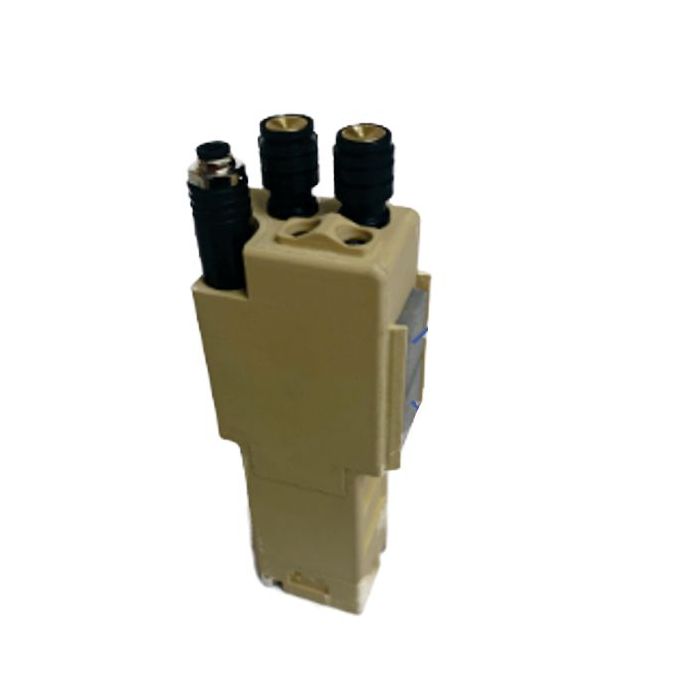

Scorpion S-1
The S-1 is exceptionally lightweight and engineered to endure the most demanding field conditions. Designed for critical operational
environments, it combines durability with advanced functionality, capable of withstanding mission-critical stress, impact, and
environmental extremes without compromise. Its onboard processor provides operational flexibility and delivers precise, timely feedback
to the user. Power management is optimized to ensure readiness and maximum output when activated, even when operating on a
marginal battery. Compact enough to fit comfortably on a chest rig or belt, the S-1 is designed for fast, intuitive use—even while
wearing gloves. Impervious to dust, sand, dirt, debris, and extreme temperatures, it remains mission-ready in any environment.

Mechanical Specifications:
Case Height: 5.6" (142.2 mm) to top of binding posts
                      4.855" (123.3 mm) case only
Width: 1.365" (34.6 mm) and 1.95" (49.5 mm) variable profile
Thickness: 1.15" (29.2 mm)
Weight: 7.25 oz (205 g) with battery
Waterproofing: Electronics hermetically sealed (IP68+)
Battery Compartment: IP68 rated

Electrical:
Output: 385 VDC at 11 Joules
Charge time: approximately 1.8 - 2.2 seconds
Battery Source: COTS 9V
Binding Posts shunted for safety

Output:

Electric: 2 easy-load push-down binding posts with gripping wire retention
Non-Electric: 1 long-life replaceable STC (Shock Tube Connector)
 * The default STC is designed for MDI (0.118) shock tube; other sizes available on request.

Electric Initiation Mode:
1. Attach the firing circuit to the output binding posts.
    Continuity check via Operations LED (Op Light):
      ● ≤ 250 Ω: Steady green (1.5A min output)
      ● 251–500 Ω: Flashing green (0.75A min output)
      ● 500 Ω: No green; defaults to Non-Electric mode
2. Arm by pressing Charge.
    Steady amber Op Light + pulsing haptic = charging.
3. Battery test (~0.2 s after Charge is depressed):
      Green = good
      Amber = marginal; charge time may be affected; plan to replace
      Red = charge time affected; replace as soon as practicable
      Flashing Red = emergency use.
4. When armed (steady red Op Light + steady haptic),
     press Fire while holding Charge to initiate.

Dark Mode:
Activate: Hold Fire, press Charge 3x within 5s. LEDs flash red alternately.
Operation: LEDs off; haptic remains active; 1-second vibration indicates continuity.
Deactivate: Hold Fire, press Charge 3x within 5s; LEDs flash green alternately.
 * Program light quickly blinks red/green when Charge is pressed

Fault Indication:
If Fire is depressed during charging before armed: charging stops,
Op Light alternates red/green, charge retained but not increased.

Non-Electric Initiation Mode:
If Op Light is not steady/flashing green before depressing Charge,
the S-1 will fire the Non-Electric output when armed and Fire is pressed.
