ShotTrack VoD-610

Item

69271

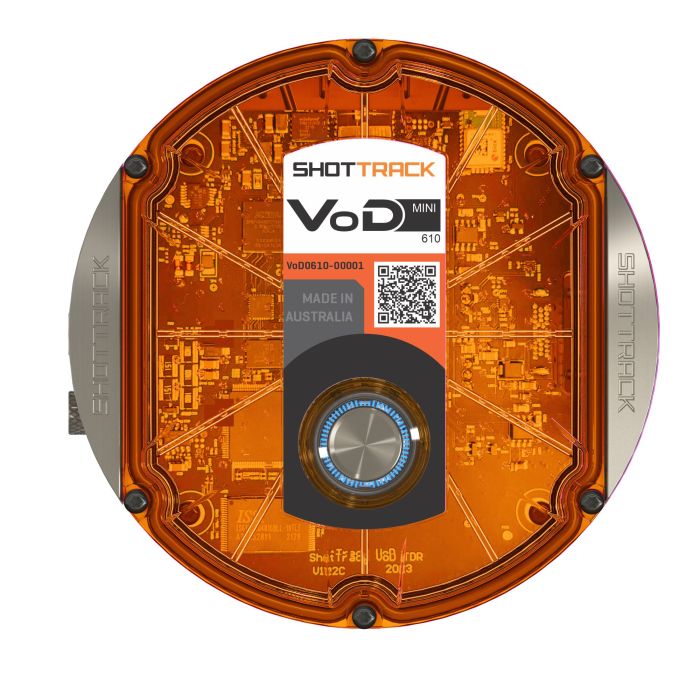

ShotTrack VoD-610

Channels: Single channel time-domain reflectometer
Consumable Compatibility: Utilizes standard co-axial cable
Maximum Cable Length: Up to 610 meters
Pulse Output: Negative 6 volts
Sampling Rate: 125 KHz (8 µS per sample)
Operational Duration: Over 10 hours of continuous run time
Dimensions: 133mm in diameter, 36mm in height
Weight: 450 grams
User Interface: Multi LED status indicator for power on/off status
Resolution: 80 picoseconds
Measurement Range: Initial dead zone covers the first 40 meters of cable
Timing Accuracy: Equipped with GPS-synchronized timing
Durability: Enclosed in an IP-68 rated waterproof and dustproof case
Application: Ideal for VoD measurement in both on-site and research environments
Software Integration: Compatible with the ShockAi Control App for enhanced functionality

Channels: Single channel time-domain reflectometer
Consumable Compatibility: Utilizes standard co-axial cable
Maximum Cable Length: Up to 610 meters
Pulse Output: Negative 6 volts
Sampling Rate: 125 KHz (8 µS per sample)
Operational Duration: Over 10 hours of continuous run time
Dimensions: 133mm in diameter, 36mm in height
Weight: 450 grams
User Interface: Multi LED status indicator for power on/off status
Resolution: 80 picoseconds
Measurement Range: Initial dead zone covers the first 40 meters of cable
Timing Accuracy: Equipped with GPS-synchronized timing
Durability: Enclosed in an IP-68 rated waterproof and dustproof case
Application: Ideal for VoD measurement in both on-site and research environments
Software Integration: Compatible with the ShockAi Control App for enhanced functionality
