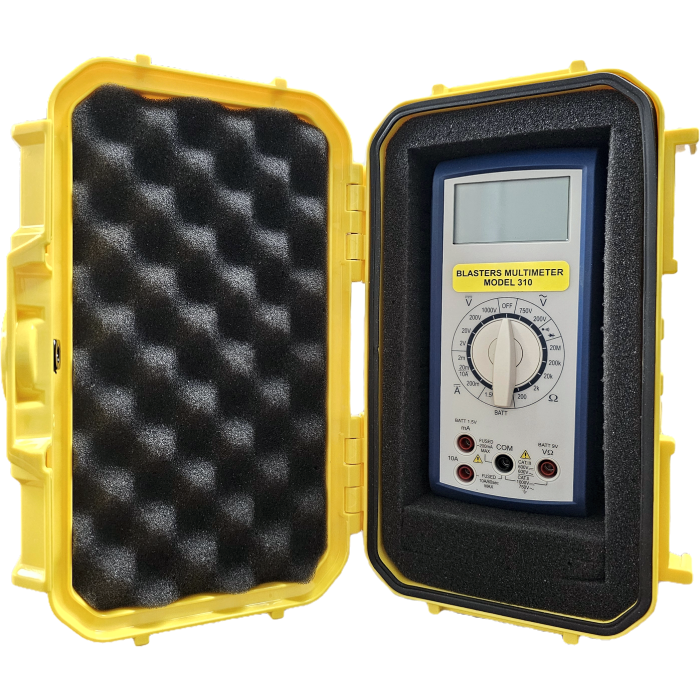

Blasters Multimeter Kit: Model 310

Specs

Kit Specifications:

• Multimeter: BK Precision 2703C (Features a custom built-in current limiting circuit with current output less than 25 miliamperes.)
• Weight: 3 LBS. (2kg)
• Size: 6.5" x 3" x 1.6" (165x78x42.5 mm)
• Seal: Dust and Damp Weather Proof
• MSHA Approved: NO
• Battery Type: 9V NEDA 1604/1604A
• Current Output: <25mA

Features:

• Magnetic hanger
• One-handed operation
• Measures up to 10 A (DC only)
• DC voltage to 1000 V
• AC voltage to 750 V
• Resistance to 20 Mohm
• Continuity test
• Diode test

Comparison

The 309 kit offers higher voltage measurement capabilities (1000VAC/1500VDC) compared to the 310 kit (750VAC/1000VDC). Additionally, the 309 kit features a higher resolution display with a 3-3/4 digit LCD and 4000 counts, and it provides better accuracy at 0.5%. In contrast, the 310 kit has a 3-1/2 digit LCD with 2000 counts and an accuracy of 1.5%.

However, the 310 kit is more cost-effective and provides all the essential features needed for most users in the blasting industry. It is priced significantly better, making it an ideal choice for those who require reliable performance without the additional capabilities of the 309 kit.
